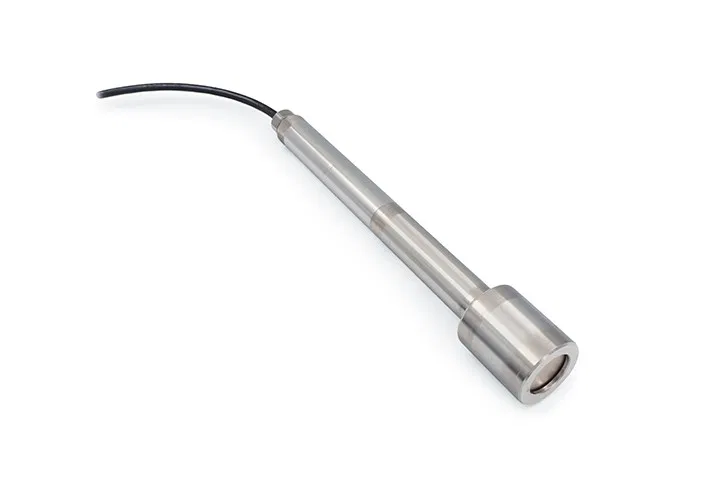

Autonomous Data Collector for Low Level
DCX-38

The DCX-38 data loggers are designed for water level measurements with a high resolution in the mbar range. They can detect water levels with a total error band of just 1 mm (measuring range 0,5 m water column, compensated temperature range -10...40 °C). Thanks to their long-life battery, they can keep measuring the water level, water pressure and temperature for years (up to 10 years at a rate of one measurement per hour). The logger can be configured using the supplied software (measurement interval, incident management, delayed measurement start etc.) and data that has been read can be displayed in a graph or chart, converted into fill levels or other units, and exported.

Download PDF
Pressure Ranges 0…0,5 to 0…3 mH2O
Total Error Band: ± 0,2 %FS @ -10…40 °C
Reading Capacity 114'000 measuring points
Dimensions ø 38 mm
Special Characteristics Capacitive sensor
×
