SERIES 20

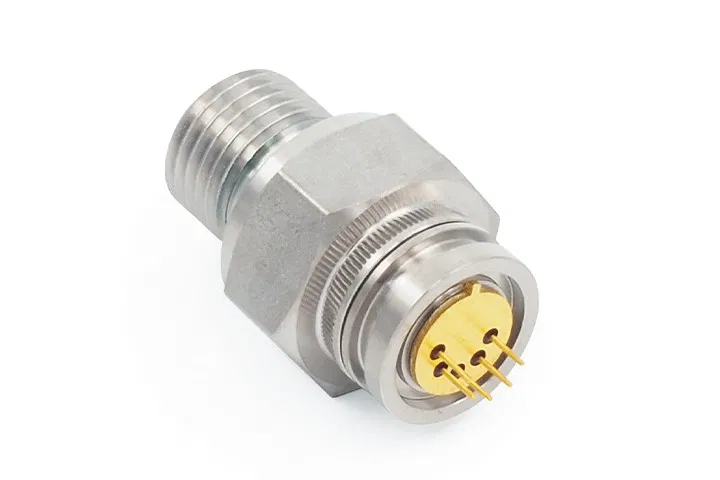

The pressure transducers of the 20 series with threaded connection offer high long-term stability and overload resistance as well as optimised temperature behaviour. The compact, robust stainless steel housing without internal seals is suitable for various OEM applications. Each pressure transducer is calibrated via pressure and temperature and supplied with a detailed calibration sheet.
- High long-term stability
- Robust, compact stainless-steel housing
- High proof pressure
- Optimised thermal behaviour
| Pressure Ranges: | 0…5 to 0…600 bar |
| Accuracy: | ± 0,5 %FS |
| Pressure Connection | G1/4, 1/4-18NPT |
| Dimensions: | HEX19 x 32mm |
| Temperature Range: | -10…80 °C |
- Insulated piezoresistive pressure sensor encapsulated in an oil-filled metal housing
- Fully welded design with no internal seals
- Typical range of output signal of 160 mV / mA
- OEM
- Industry
- Water management
- Air-conditioning technology
