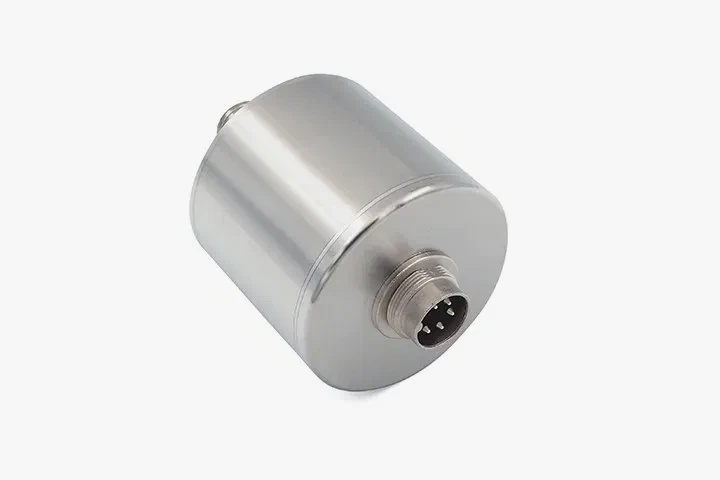

Differential Pr. Transmitter
Series PD-41X
The capacitive pressure transmitters of the PD-41X series are designed for measuring differential pressure values in the mbar and µbar range. They use digital compensation with a mathematical model to achieve an accuracy of 0,1 %FS. In addition to the digital RS485 interface, the X-line transmitters have a rangeable analog current or voltage output.
| Pressure Ranges: | 0…0,03 to 0…0,3 bar |
| Accuracy: | ± 0,1 %FS |
| Total Error Band: | ± 0,2 %FS @ 10…50 °C |
| Line Pressure: | 2 bar |
| Interfaces: | RS485, 4…20 mA, 0…10 V |
| Special Characteristics: | Capacitive sensor |
