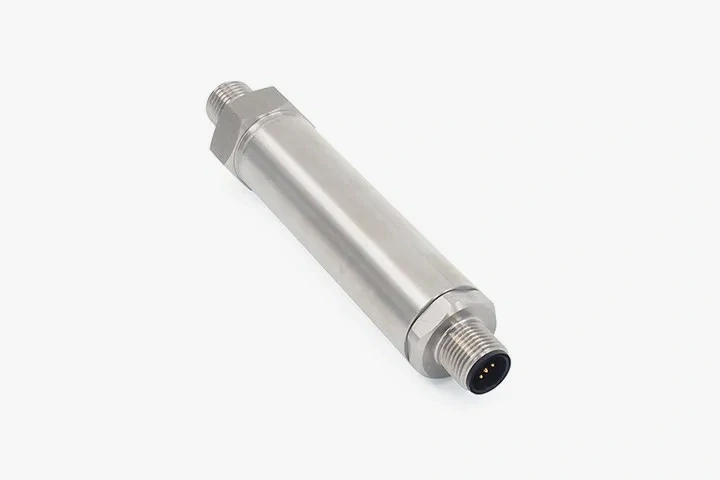

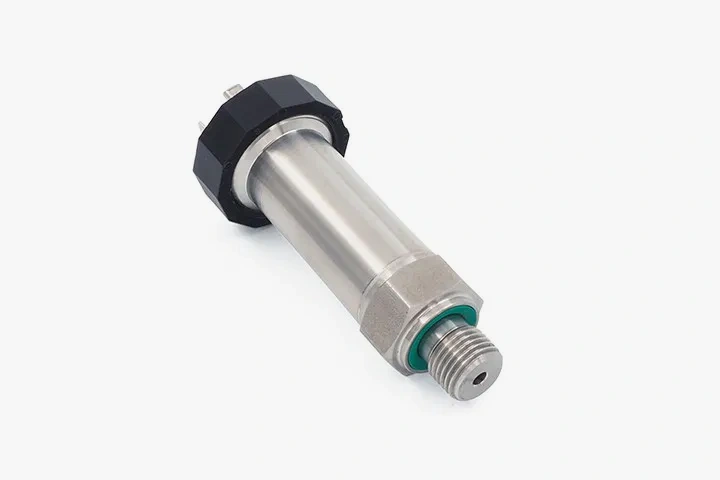

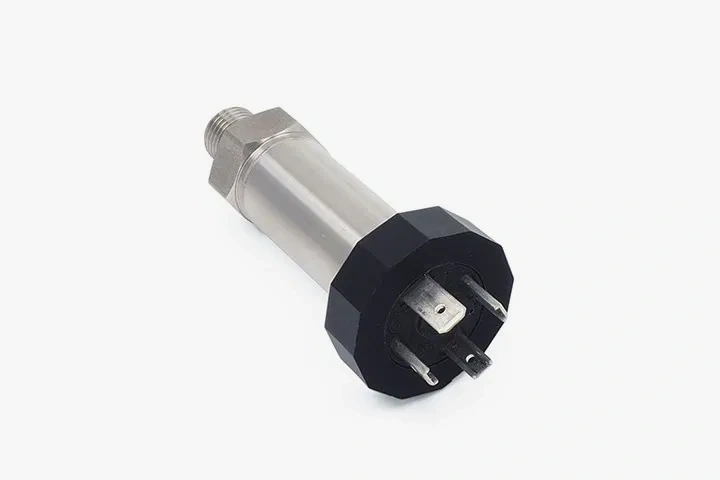

High Accuracy Pressure Transmitter
Series 23SX
In the 23SX series high-precision pressure transmitters, temperature dependencies and non-linearity are precisely compensated for by means of a mathematical model in the microcontroller. In addition to the RS485 interface with Modbus RTU protocol, there is also the option of outputting the measurement results as a scalable analogue signal via the integrated D/A converter. The fully welded construction without internal seals is suitable for dynamic applications. Only stainless steel is in contact with the media.
- RS485 interface can be combined with an analog interface
- Analog interface can be ranged via RS485 (turn-down)
- Modbus RTU protocol for process values and configuration
- Excellent long-term stability
| Pressure Ranges: | 0…0,16 to 0…1000 bar |
| Accuracy: | ± 0,1 %FS |
| Total Error Band: | ± 0,25 %FS @ -10…80 °C |
| Interfaces: | RS485, 4…20 mA, 0…10 V |
| Temperature Range: | -40…125 °C |
- Insulated and encapsulated piezoresistive pressure sensor
- Fully welded construction without internal seals
- High-quality pressure transducers and proven mathematical compensation
- Based on technology from the well-known 33X series with the highest level of accuracy
- Engine test benches
- Industrial applications
- Automation technology
- Mobile hydraulics
