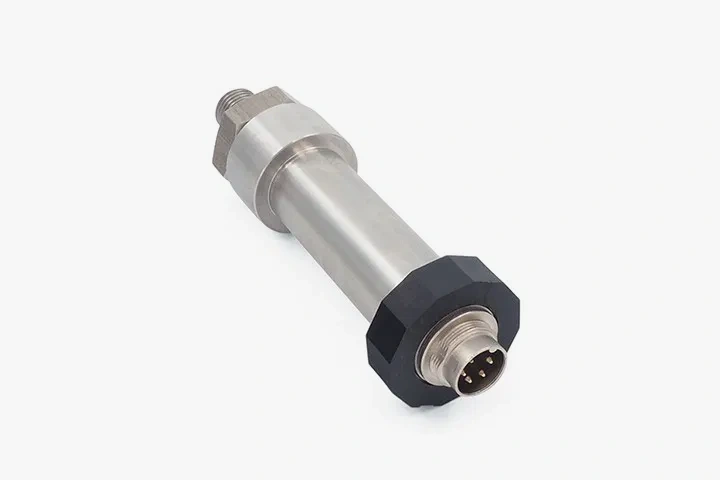

High Accuracy Pressure Transmitter upto 0.01%
Series 33X
The pressure transmitters of the 33X series use digital compensation with a mathematical model to achieve exceptional accuracy of 0,05 %FS – in the temperature range from 10 to 40 °C, this value even corresponds to the total error band. Additional measurements and selections can optionally be used to achieve a precision (and also, if calibrated in an accredited test laboratory, an accuracy) of 0,01 %FS. In addition to the digital RS485 interface, the X-line transmitters have a rangeable, analog current or voltage output.
- Maximum accuracy/precision down to 0,01 %FS
- RS485 interface can be combined with analog interface
- Analog interface rangeable by RS485 interface (turn-down)
- Modbus RTU protocol for process values and configuration
- Highest long-term stability
| Pressure Ranges: | 0…0,3 to 0…1000 bar |
| Accuracy: | ± 0,05 %FS |
| Total Error Band: | ± 0,1 %FS @ -10…80 °C |
| Interfaces: | RS485, 4…20 mA, 0…10 V |
| Temperature Range: | -40…125°C |
- Insulated and encapsulated piezoresistive pressure sensor
- High-quality pressure transducers and tried-and-tested mathematical compensation
- Laboratory use
- Test benches
- Gauge standard
- Precision measurements
- Industrial applications
