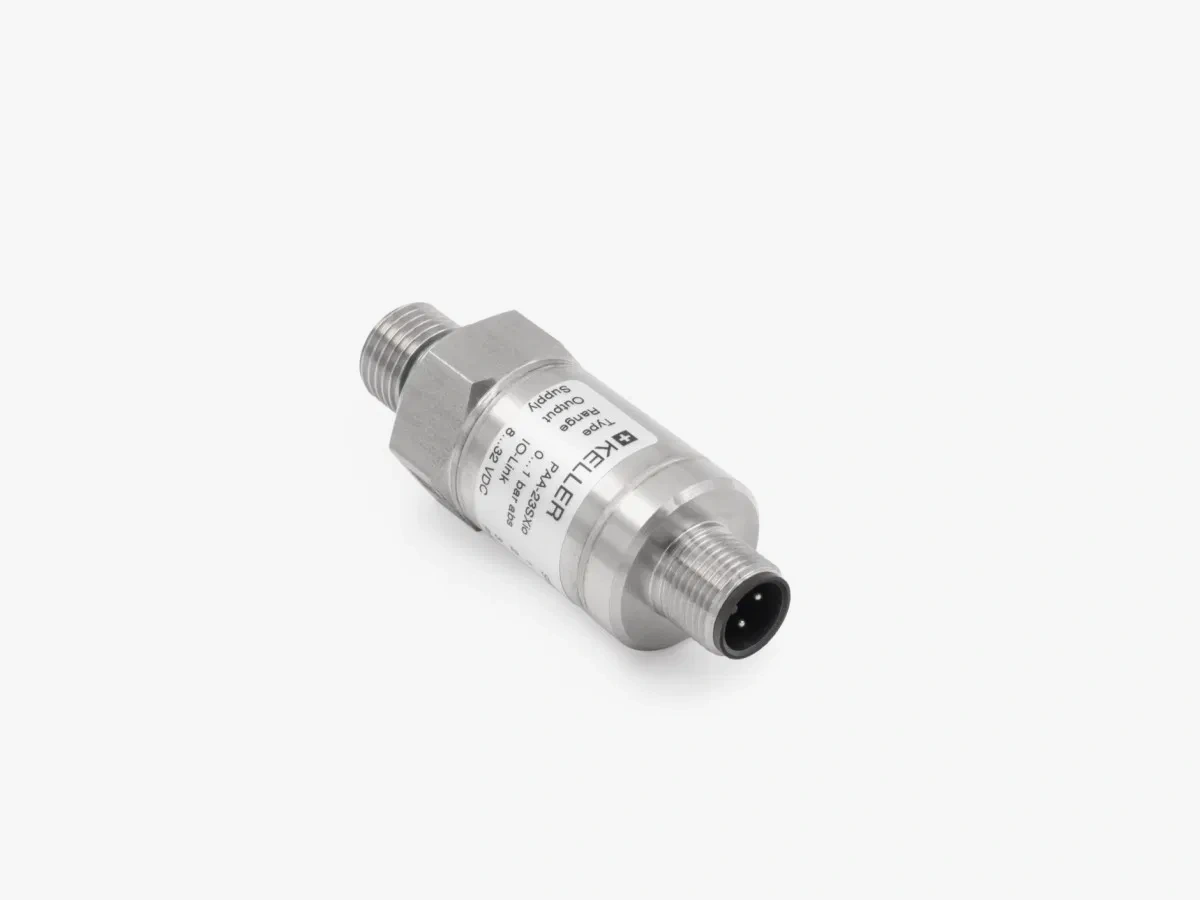

High-precision piezoresistive pressure
transmitters with IO-Link interface
Series 23SXio
The high-precision pressure transmitters of the 23SXio series with integrated IO-Link interface can be used both as pressure transmitters and as configurable pressure switches. Thanks to the IO-Link interface in accordance with IEC 61131-9, the 23SXio integrates seamlessly into intelligent automation systems. The switching functions and other parameters can be called up and reconfigured via IO-Link, which enables fast commissioning and flexible adaptation to specific requirements. This minimises machine downtimes and reduces the workload. Wetted parts are made entirely of stainless steel and, thanks to the fully welded construction and the absence of internal seals, the 23SXio series offers maximum durability and reliability, even in demanding environments. Series 23SXio pressure transmitters are the ideal solution for modern automation applications that require high accuracy, flexibility and durability.
- IO-Link interface compliant with IEC 61131-9
- Can be used as a pressure switch
- Easy connection to the bus system via IO-Link master
- Excellent long-term stability
Pressure Ranges: | 0…0.16 to 0…1000 bar |
Accuracy: | ± 0,1 %FS |
Total Error Band: | ± 0,25 %FS @ -10…80 °C |
Interfaces: | IO-Link, switching output |
Temperature Range: | -40…125 °C |
- Insulated and encapsulated piezoresistive pressure sensor
- Fully welded design with no internal seals
- High-quality pressure transducer and tried-and-tested mathematical compensation
- Automation technology
- Hydraulics and pneumatics
- Industrial applications
