High Precision OEM Pr. Transmitter
Series 10LX…10LHPX

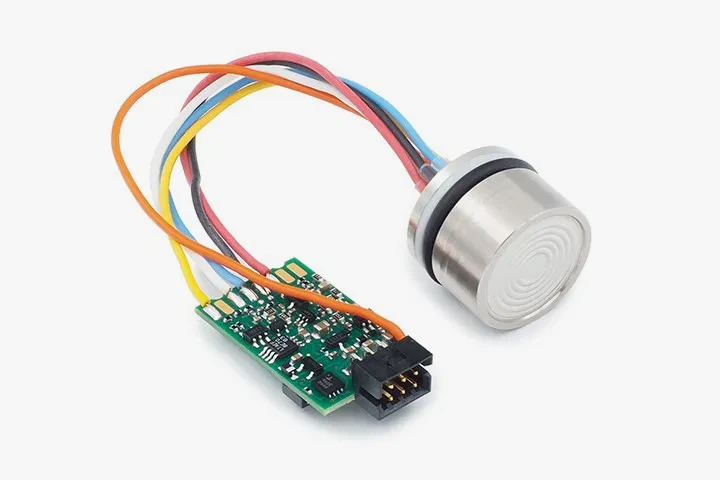

The OEM pressure transmitters of the 10LX series by KELLER are a combination of a pressure transducer from the Series 10L and the tried and tested X-line electronics. Both temperature dependence and non-linearity are precisely compensated for in the microcontroller by means of a mathematical model, thereby achieving the highest degree of accuracy. The 10LX owes its versatility to its compact design and robust stainless steel housing, which mean it can be used in a wide range of OEM applications.
- Highest accuracy / precision up to 0,01 %FS
- RS485 interface can be combined with analog output
- Highest long-term stability
- Front-flush diaphragm welded with no gaps
| Pressure Ranges | 0…0,3 to 0…200 bar |
| Accuracy | ± 0,05 %FS |
| Total Error Band | ± 0,1 %FS @ -10…80 °C |
| Interfaces | RS485, 4…20 mA, 0…10 V |
| Dimensions | ⌀ 19mm x 57…96 mm |
- Insulated and encapsulated piezoresistive pressure sensor
- High-quality OEM pressure transmitters and tried-and-tested mathematical compensation
- Ideal for mounting with O-ring
- OEM
- Industrial applications
- Laboratory use
- Oceanology
